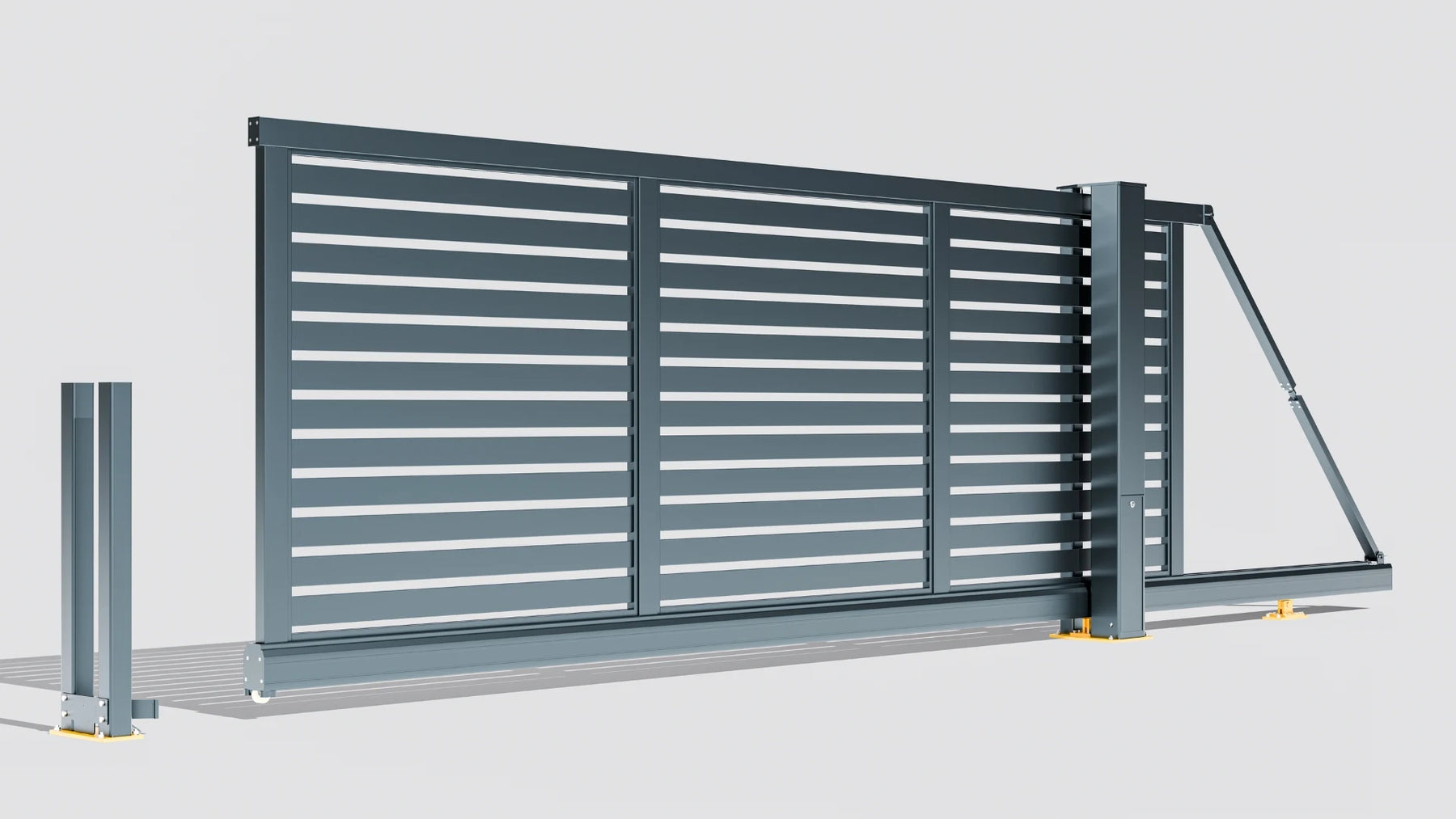

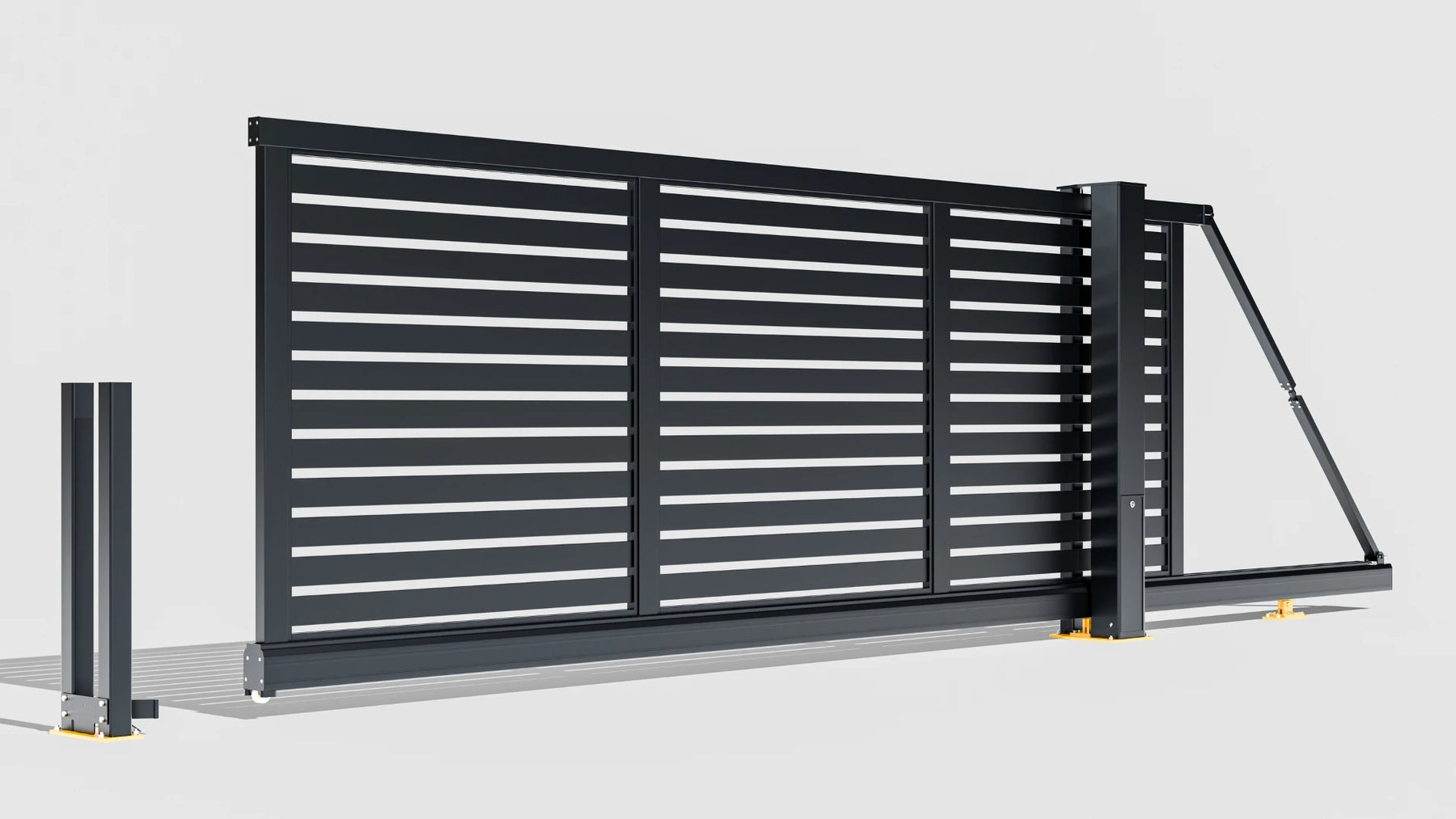

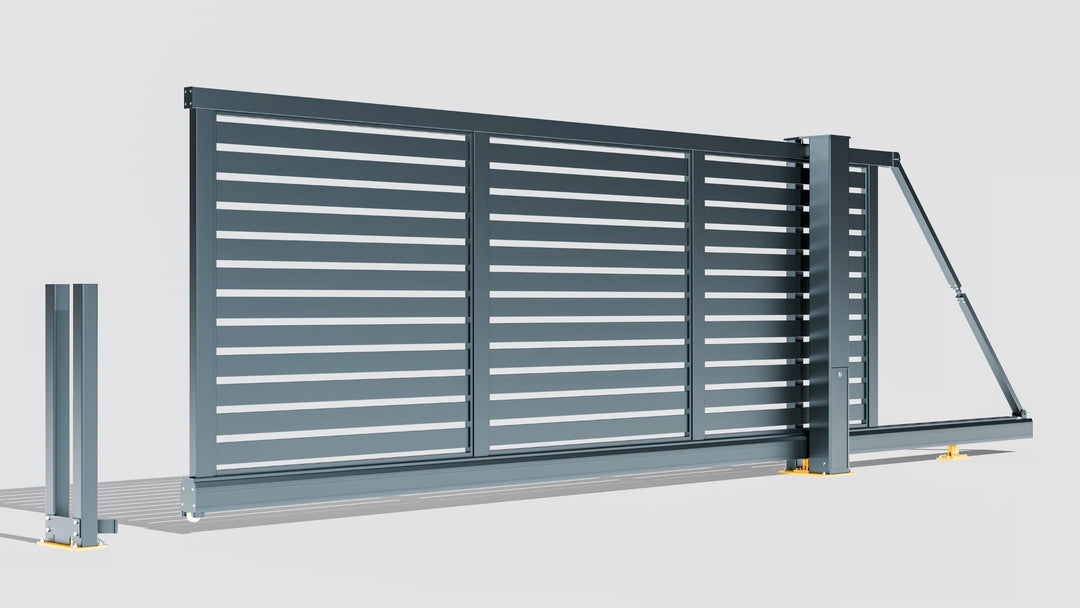

Cantilever Sliding Gate (Open)
- 3-Year Manufacturer's Warranty
- Specialist HIAB Delivery
- Made to Order
Configure your cantilever gate
Choose the operation, colour, gate size and opening direction, then review everything before adding the gate to your basket.
Choose how the gate will operate
Select manual or automated operation from the options available for this gate.
Choose your colour
Select the available frame and infill finish.
Choose your gate size
Select the standard gate size first, then choose whether the width and height remain standard or are reduced to exact custom measurements.
Width
Height
Choose the opening direction
Choose the direction when looking at the entrance from outside the property.
Your order summary
Review the complete configuration before adding it to your basket.
Secure checkout · Prices include VAT · Delivery calculated at checkout
We will email a short handing form before manufacture begins to confirm the width, height, opening direction, operation, colour and delivery details.
Every gate configuration
- Powder-coated aluminium cantilever sliding gate manufactured to the selected design, standard size and any chosen custom width and/or height measurements
- Cantilever support and running components supplied as part of the selected gate package
- Left- or right-opening preparation as selected within the configurator
Manual configuration
The Manual option does not include a motor, controller, photocells or powered automation equipment.
Automated configuration
The Automated option includes the Roger Technology TW90 automation system specified for the gate, including the motor and gearbox, digital controller and receiver, dual hard-wired photocells and integrated nylon gear rack with steel core.
Any additional access-control equipment or site-specific safety devices required by the installer are not included unless expressly shown on the order.
- Premium powder-coated aluminium cantilever gate construction
- Track-free operation keeps the driveway opening clear of a ground rail
- Available in finished widths from 3000 mm to 5500 mm, in 250 mm manufacturing increments
- Available gate heights: 1600 mm, 1800 mm and 2000 mm
- Select a standard gate size first, with the option to reduce the width, height or both to exact custom measurements within the selected standard size
- 5250 mm and 5500 mm widths use the specified structural tension-brace arrangement where required by the selected design
- Opening direction available left or right when viewed from outside the property
- Manual and automated configurations are available; motor, controller, photocells and powered gear-rack equipment are included only with the Automated option
- Jet Black RAL 9005, Anthracite Grey RAL 7016 and Custom RAL finishes are available where shown in the configurator
Product-specific installation dimensions can be viewed using the dimensional drawing card after selecting the gate size and opening direction.
The following equipment is included only when the Automated configuration is selected. Manual gates do not include a motor or powered automation equipment.
Advanced automation technology
The main tower post is designed to house the Roger Technology motor and gearbox, keeping the principal mechanical components concealed for a clean appearance.
Roger Technology TW90
Low-voltage brushless electromechanical motor designed for intensive sliding-gate use.
- Sensored digital magnetic encoder for smooth, precise movement
- Integrated B70-series digital controller
- Two-channel radio receiver
- Dual hard-wired photocells for safety
- Integrated nylon gear rack with steel core
Site-specific access controls and any additional safety devices required following the installer’s risk assessment are not included unless expressly shown on the order.
Before ordering, confirm the finished gate width and height, opening direction and that there is sufficient run-back space beside the entrance for the complete gate and cantilever tail.
The site must have suitable ground levels and enough space for the support posts, running hardware and correctly designed concrete foundations. Automated configurations also require the appropriate electrical supply, cable routes, safety equipment and final commissioning.
Cantilever sliding gates require accurate setting out and should be installed by a suitably experienced gate installer. Automated gates should be commissioned by a competent local gate automation engineer who can assess the site and complete the required safety checks.
Residential Gates is a supply-only online retailer and does not provide installation or site surveys.
- Aluminium gate structure: 3-year manufacturer’s warranty
- Automation components (Automated option only): 3-year manufacturer’s warranty
Warranty cover is subject to correct installation, use and maintenance in accordance with the manufacturer’s instructions.
We cannot confirm the exact delivery date when the order is placed because sliding-gate deliveries are scheduled closer to completion. We will email the confirmed delivery date as the expected delivery window approaches.
Estimated lead time
- Cantilever sliding gates: approximately 6–8 weeks from the order date
Delivery charges
Delivery is chargeable for cantilever sliding gates and is calculated at checkout.
The driver will normally contact you on the evening before delivery with an estimated arrival time.
Returns
Cantilever sliding gates cannot be returned, whether ordered in a standard or custom size and whether manual or automated. This does not affect your statutory rights if the product is faulty or not as described.
